Programmable Refrigerated Low Temp. BOD Incubator (프로그램 저온 BOD 배양기)
Specifications
|
Heating |
Forced Air Convection |
|
Cooling |
CFC Free air cooled hermetically sealed compressor |
|
Temp. Range |
+ 0°C ~ 70°C |
|
Accuracy |
± 0.2°C at 20.0°C (JSBI-150CP) |
|
Uniformity |
± 0.5°C at 20.0°C (JSBI-150CP) |
|
Control |

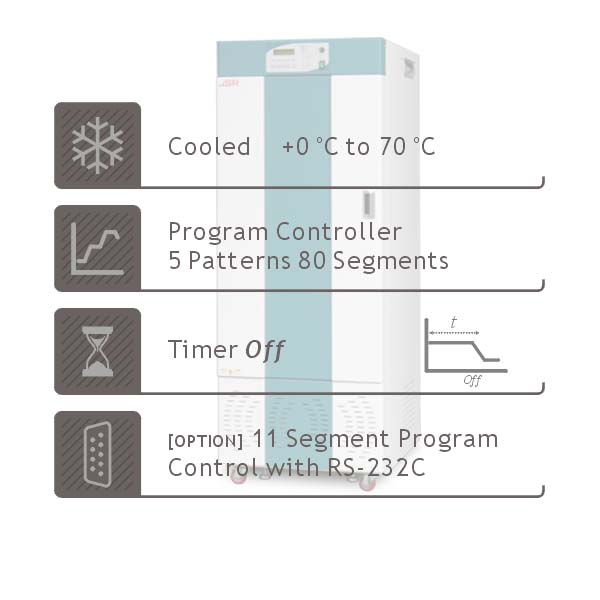

Programmable 16-bit Microprocessor PID Control with STOP Timer |
|
|

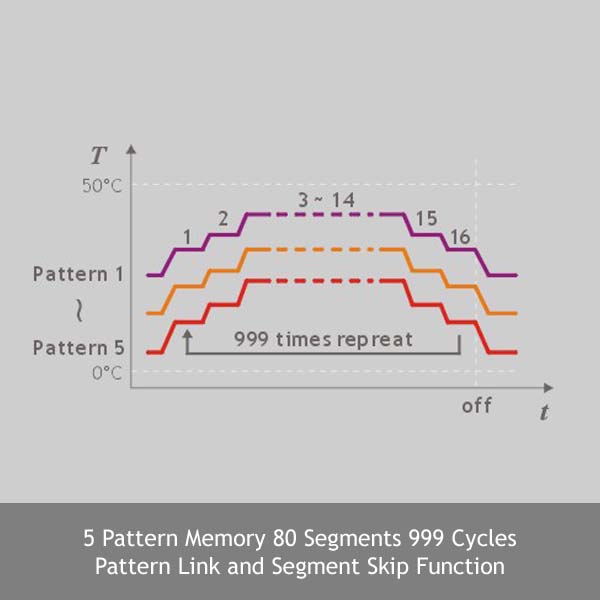

5 Patterns Memory 80 Segments 999 Cycles repeatable |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Inner Glass Door : Tempered Safety |
|
|
Shelf -including PVC coated wire shelf |
|
|
optional perforated stainless steel shelf |
|
|
Built-in caster for east transport |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
||||
|
Chamber Volume |
150 L |
250 L |
420 L |
|
|
Dimensions |
Inner |
500 x 500 x 600 |
500 x 500 x 1000 |
700 x 600 x 1000 |
|
W x D x H mm |
Outer |
680 x 810 x 1430 |
680 x 810 x 1830 |
880 x 910 x 1830 |
|
Temperature Range |
+0°C to 70°C |
|||
|
Accuracy at 20.0°C |
± 0.2°C |
|||
|
Uniformity at 20.0°C |
± 0.5°C |
|||
|
Number of shelves/Max. |
2 / 20 |
3 / 25 |
3 / 25 |
|
|
Heater Capacity |
900 W |
1.0 kW |
1.5 kW |
|
|
Refrigeration System |
CFC-Free Air Cooled Hermetically Sealed Compressor |
|||
|
Power Rating |
7.1 Amp |
7.6 Amp |
10.3 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
|||
Features
|
Controller |
|
JSC-5D Programmable Controller 5 Patterns 80 Segments ±0.1°C Programmable 16-bit Microprocessor PID Controller Two-line back-light LCD Display 5 Patterns Memory 80 Segments 999 Cycles repeatable Supports Constant Temperature Mode / Program Mode Pattern link function Segment skip function Automatic STOP timer Adjustable timer scale 99min 59sec / 99hr 59min continuous operation Temperature calibration function Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy decontamination and prevents leakage Durable Stainless Steel 304 Sheath Heater and Copper-Aluminum fin evaporator Tempered safety inner glass door for easy observation of samples
|
|
Performance |
|
Forced circulation for excellent thermal uniformity within ±0.2°CSeparate heating and cooling compartment prevents contamination and maintenance free Cooling system with hermetically sealed compressor
|
|
Convenience |
|
Outer door with self adhesive magnetic packing Inner glass door with high density silicone packing and air-tight door lock Stainless Steel 304 Chamber with seamless round cornered edge allows easy decontamination and prevents leakage Removable and height adjustable shelf by 25mm spacing Adjustable automatic defrost system
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit OVER COOLING. CUT-OFF Digital system automatically cut-off compressor in case -3°C below set temperature SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSBI-150CP |
Programmable Refrigerated Incubator |
220 VAC 50/60 Hz |
150 L |
115 kg |
155 kg |
|
JSBI-250CP |
Programmable Refrigerated Incubator |
220 VAC 50/60 Hz |
250 L |
145 kg |
185 kg |
|
JSBI-420CP |
Programmable Refrigerated Incubator |
220 VAC 50/60 Hz |
420 L |
180 kg |
225 kg |
|

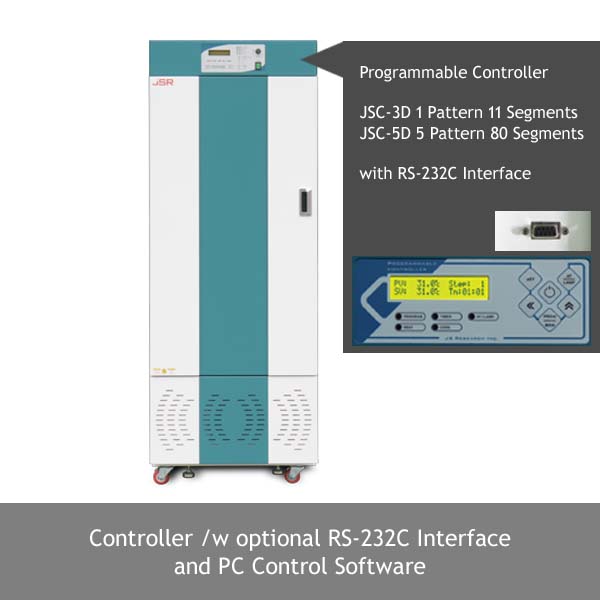

Optional Controller |
|
|
Art No. |
Descriptions |
|
OEC-003 |
JSC-3D Programmable Controller 1 Pattern 11 Segments /w RS-232C Interface, PC Software |
|
|
16-bit Microprocessor ±0.1°C Digital PID Controller 2-Line Back-Light LCD Display Constant Temperature Mode / Program Mode 1 Pattern 11 Segments 999 times or unlimited repeat. Segment skip function Automatic STOP timer Adjustable timer scale 99min 59sec / 99hr 59min or continuous Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor RS-232C Interface with PC Software |
|
|

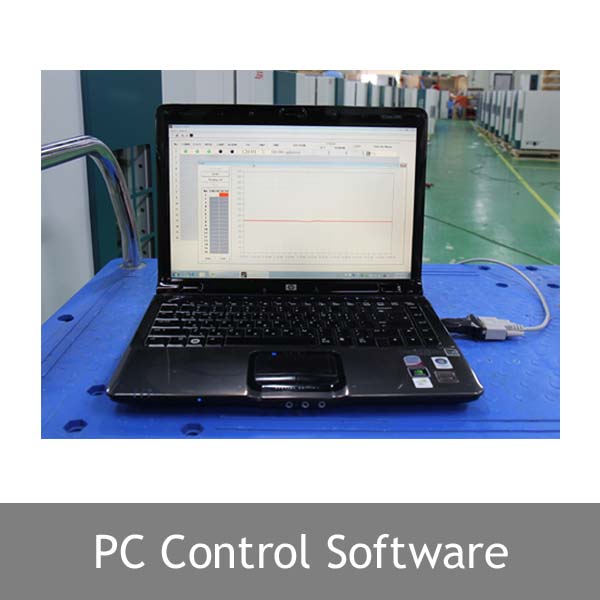

PC Software |
|
|
Turn On and Off control Temperature and Timer Setting Pattern Programming and uploading Current temperature Graph Rendering Temperature Data Logging by 0.01°C resolution Alarm Signal |
|
Optional Accessories |
|
|
Art No. |
Descriptions |
|
OEA-001 |
Power Outlet Consent in Chamber for CEE 7/7 Schuko Plug |
|
OEA-002 |
Power Outlet Consent in Chamber for BS 1363 Plug |
|
|
|
|
Art No. |
Perforated Shelf, Stainless Steel 304 |
|
PHS-A06 |
for JSBI-150CP, 250CP W470 x D480 mm |
|
PHS-A13 |
for JSBI-420CP W670 x D580 mm |
|
|
|
|
Art No. |
PVC Coated Wire Shelf |
|
PHS-C05 |
for JSBI-150CP, 250CP W470 x D480 mm |
|
PHS-C06 |
for JSBI-420CP W670 x D580 mm |
|
|
|
|
PHS-A99 |
Shelf Support, Set of 4 |
